Model No. : SE-KVM-2

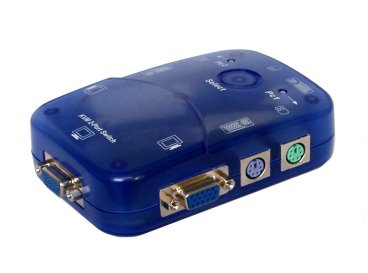

  2 Port KVM Switch


  FEATURES AND SPECIFICATIONS

General Features
  • Compact size, easy to use and portable
  • Support Microsoft Intellimouse, Logitech Net Mouse...etc
  • Support DOS, Win3.X, Win95/98/98SE/2000/ME/XP, WinNT, Netware, Unix, Linux
  • Hot Plug - add or remove connected PCs for maintenance without powering down the KVM switch or PCs
  • High Video Quality
  • No Software required - easy PC Selection via push buttons, Hot keys
  • Auto scan mode for monitoring PCs
  • Keyboard status restored when switching PCs
  • LED display for easy status monitoring
  • Buzzer sound for switching port confirmation
  • Optional 9V 500mA power adapter


Specifications :

  PC Port 2
  Console Port 1
  Max PC Connections 2
  LED 2
  PC Port Connector PS/2 Keyboard min - din 6 pin
    PS/2 Mouse Mini Din 6 pin
    VGA HDDB 15 pin
  Console port connector PS/2 Keyborad mini Din 6 pin
    PS/2 Mouse Mini Din 6 pin
    VGA HDDB 15 pin
  PC selection Hot key / Button
  On Screen Display Control No
  Keyboard Emulation PS2
  Mouse Emulation ( Console to PC ) PS2
  Bandwidth 200MHz
  Housing Plastic
  Size Mini Desktop
  Weight 150 g
  Dimension 130x65x29 mm


   Package Content

  • SE-KVM-2

  • User Manual

  • 2 set of KVM cables
