Model No. : SE-801MA


  Digital Media Adapter with Ethernet and WIFI connection





General Features :




Fueling the Digital Home revolution, Sedna has created the Digital Media Adapter (DMA), which brings family entertainment to a new level. The DMA provides a simple way to share high quality digital data from the internet or your PC. Connect the DMA to your computer either by Ethernet or by WiFi, and then enjoy digital music, movies, photos, and TV programs on your TV or stereo. Use the built-in card reader to plug in a digital camera memory card and directly play a photo slideshow. You can even use the DMA to surf the internet directly on your TV.




Features :


.

  • Streaming from your PC.

  • Playback of MP3, MPEG4, WMA, WMV, and many other files.

  • Listen music collection on your stereo system.

  • All-in-one card reader with slideshow function.

  • Built-in slideshow function with back ground music.

  • HDTV-grade video output, up to 1980X1080(1080p).

  • Internet radio application.

  • SCART / DVI / D-connector output.

  • Ethernet and embedded 802.11g/b WiFi connection.

  • Internet surfing right on your TV.

  • Supports IR remote control.

  • Noiseless, no-fan design.

  • One to multi PCs or multi DMA to share multi PCs.

  • Fashionable, “cool” design.
  Specifications:
    Memory DDR-SDRAM 64 MB, 4M
  Data Input port
  • RJ45 LAN port x 1
  • IR Receiver x 1
  • DC Jack
  •  Wi-Fi (802.11g/b)
  • Internal IDE connector
  • 8 in 1 card reader
  • USB 2.0 host port x 1
    Video Output
  • Composite RCA pin x 1
  • Component Y/ Pb/Pr x 1
  • S-Video X1
  • DVI connector x 1
  • SCART 21 pin connector x 1 (optional)
  • D4-connector x 1 (optional)
  • RGB x 1 (combined W/DVI)
    Audio Output
  • 5.1 Ch RCA x 5 (combined W/RCA pin L/R X2)
  • SPDIF optical
  • SPDIF coaxial
    Output mode



  • Component NTSC/ PAL/ 480p/ 720p/ 1080i/ 1080p

  • Composite NTSC/ PAL

  • DVI 480p/ 720p/ 1080i/ 640 x 480/ 800 x 600/ 1024 x 768/ 852 x 480

  • S-Video NTSC/ PAL, RGB 640 x 480/ 800 x 600/ 1024 x 768

  • D-Connector D1/D2, Stereo Audio L/R, 5.1 Ch Audio, SPDIF Audio
    Language English, Chinese, Japanese, Pan-European, plus others.
    Audio & Video specs



  • MPEG-1 Layer1, 2, 3, OGG Vorbis, AC3 5.1, Advanced Audio Coding, Apple MPG-4 AAC Audio, Microsoft Windows Media Audio version ˝

  • Microsoft PCM Wave, JPEG/HD JPEG, BMP, TIFF, GIF, PNG

  • MPEG1/2/4 & WMV(H/D)
    System Requirements

PC:

  • 500 MHz Pentium III or faster.

  • OS: Windows 98SE/ ME/ 2000/ XP/ NT4.0/ Server2003

  • Minimum 50 MB of available HD space, Minimum memory of 128MB, 256MB recommended.

  • Wireless or Wired network interface

Mac:

  • Power PC G3 or faster.

  • Mac OS 10.1.2 operation system.

  • Minimum 50 MB of available Hard Disk, Minimum 128 MB Memory or greater (256 MB recommended).

  • Wireless or Wired network interface
    Power

Power adapter:

100-240V AC input; DC output 5V/3A

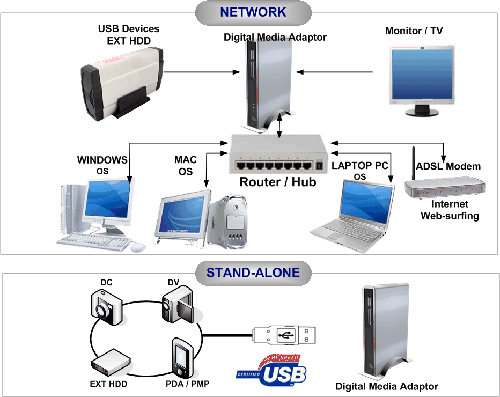

    Application:
