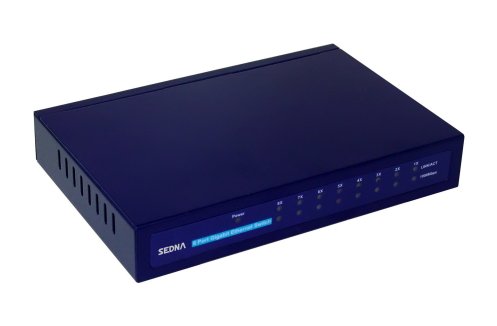

Model No. : SE-GS-108

  Desktop 8 port 10/100/1G  Ethernet Switch

 Features :


SE-GS-108, desk-top Gigabit Switch, offers 8 10/100/1000Mbps Auto-Negotiation Ethernet ports. All the ports, supporting Auto MDI/MDIX. On the basis of reserving former 10/100M network layout, you can greatly enhance your PC's transmission rate by replacing with Gigabit Switch. It is favorable Gigabit Switch.

  • Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab Ethernet standards
  • Supports NWAY Auto-Negotiation function, auto detect transmission rate and duplex models, UPnP
  • Offers 8 10/100/1000Mbps Auto-Negotiation RJ45 ports and supports Auto MDI/MDIX to simplify network fragment and maintenance
  • Supports IEEE802.3x full-duplex flow control and half-duplex backpressure flow control
  • Supports non-blocking line speed transfer up to 10Gbps backplane bandwidth
  • Adopts store-and–forward mode, supports MAC Address auto learning and integrates 8K MAC Address Table
  • External Power Adapter and desk MINI steel chassis design
     Specifications :
Transmission Media : 10Base-T:Cat.3 or 3e UTP;; 100Base-TX:Cat.5 UTP;; 1000Base-T:Cat.5e UTP
Ports : 8 RJ-45 ports and 10/100/1000Mbps per port
Dimensions : 26 x 106 x 158 mm
Consumption : 10 W
AC adapter output range : 5V 3000 mA
Storage temperature  : -40℃~70℃
Storage Humidity : 5%~90% RH no condensing
Operating temperature : 0℃~40℃
Operating Humidity : 10%~90% RH no condensing
Filtering Address Table : 8K
Backplane Bandwidth : 16 Gbps
Standards and Protocols Supported : IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

Approval : CE / FCC

     Package Content :
  • SE-GS-108 switch
  • External Power Adapter
  • User manual
