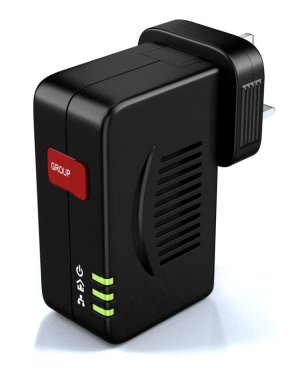

Model No. : SE-HP-T6


  Home Plug AV ( 200Mbps) PLC to Ethernet Bridge


  FEATURES AND SPECIFICATIONS


Products Description :

Running new wires to create a home / SOHO network can be expensive and disruptive. With PLC Technology ( Power Line Communication ), the existing wires in the house serve as the network. The Sedna SE-HP-T6 Home Plug 200M / Ethernet adapter make use of this PLC Technology, enabling all existing wires to serve as a virtual network that turns every electrical outlet into an Ethernet port or other network connection point, no new wires will be needed.

 SE-HP-T6 is fully compatible with Homeplug AV specifications with speed up to 200Mbps over the powerline communication environment. SE-HP-T6 overcomes the usual problem of  the fast signal degradation from wireless communications over the solid brick walls in your premise. Segment bursting and contention-free access ensures high throughput while maintaining low latency response. Coupled with Quality of Service feature, it also provides such high speed data rate transmission and necessary bandwidth for multimedia applications like HDTV streaming, IPTV & cable TV, VoIP calls, Online Gaming , Video streaming across the network and Security camera connectivity… etc.



General Features :

  • Power Line Communication Technology to connect the computers in home or office for share online gaming, VoIP call, audio-video transmission and media streaming...so on
  • No new wires, just use the existing electrical outlet nearby
  • High transfer rate : 85Mbps
  • Easy to install : just plug to any electrical socket in the house
  • Support Homeplug 1.0 specification
  • IEEE 802.3 10/100 Ethernet (100Mbps) and IEEE 802.3u fast Ethernet
  • Accurate : Forward Error Correction support
  • High security : 56bit DES Encryption with key management
  • CSMA/CA scheme with prioritization and automatic repeat request (ARQ) for reliable delivery of Ethernet packets via packet encapsulation.
  • Four-level prioritized random access method exists with strict adherence to priority.
  • Platform supports OS independent with TCP / IP protocol installed
  • Provided with plug for UK/US/Europe/Australia

Specifications :

Model : SE-HP-T6-EU
SE-HP-T6-US
SE-HP-T6-UK
SE-HP-T6-SAA
Standard : HomePlug Powerline AV Specification compliant
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
Protocols CSMA/CA MAC control
Transfer procedure Asynchronous
Platform Support OS independent with TCP/IP protocol installed and with Ethernet port
Connector : One RJ-45 port
Plug Type : UK
US
EU
SAA
Speed : UP to 200Mbps
Modulation OFDM - 1155 carrier, 1024/256/64, QPSK, BPSK
Frequency Band 2Mhz to 30Mhz band
Encryption : 128 bits AES encryption
Indicators : PWR / PL Act / Ethernet Act
Weight : 180 g
dimension : 95x60x38 mm
Approval : CE, FCC
Operating Temperature : -10 to 50 degree C
Operating Humidity : 10~90% (non-condensing)
Input Voltage : 100V~240V AC, 50~60Hz

Package Content :
  • SE-HP-T6 Home Plug Adapter
  • Ethernet cable
  • Utility CD
  • User Manual
