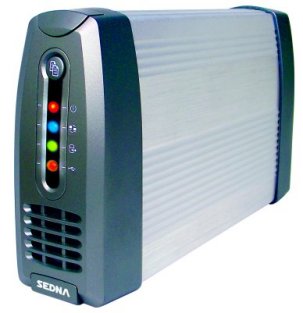

Model No. : SE-NAS-05
Network Attached Storage ( NAS ) Enclosure  for 3.5 in HDD
@

@ @
@ @
  @
@

 Features :

  • Network Attached Storage (NAS) server for home and SOHO user

  • Easy way for LAN users to backup data or share files through intranet/internet

  • SAMBA Server for file sharing

  • Support FTP server

  • One press back up button

  • LAN and USB combo interface

  • Greatest flexibility for SOHO users and frequent travelers

  • Free backup tool for Windows, works with USB port

  • HDD Sleep mode for Energy Saving

  • 100Mbps LAN port

  • DHCP Server & Client

  • Energy saving : Automatic hard drive spin-down

  • Active cooling system - Big culling fan and aluminum case prevent hard drive from overheat

  • Connect from internet with FTP protocol

  • One Press back up button

  • @

@ @
Hardware Specifications :
  • Networking Standard : 10BASE-T / 100BASE-TX

  • USB 2.0 High-speed mass storage device port. USB-B connector x 1

  • Supports one 3.5 ATA 100/ATA133 IDE hard drive. Capacity up to 500GB

  • LED indicators : Power, LAN link, Hard drive busy, USB link

  • Function Keys : One-Button backup key, Reset button, Power button

  • Built-in 40cm cooling fan

  • Power input : DC +12V, 2A jack

  • External universal AC power adapter

  • Physical dimension : 210 x 50 x 121mm

Software Specifications :
  • Fixed IP or DHCP client (automatic IP assignment)

  • DHCP server V Allows direct connection with a client PC

  • FTP server

  • Samba server (CIFS / SMB protocol)

  • Web-base management interface

  • User account and share folder security

  • Built-in scan disk and disk format utilities

  • Supports Unicode file name

  • Supports FAT32 file system (single file size maximum 4GB)

  • Energy saving : Automatic hard drive spin-down after idle for 0-60 minutes (User configurable)

  • Supports NTP (Network time Protocol) time server

  • Firmware upgrade via HTTP21mm

Package included:

  • SE-NAS-05 enclosure x 1
  • Power adapter x 1
  • RJ45 Network cable x 1
  • USB 2.0 cable x 1
  • User's manual x 1
  • Reset button plastic cover x 1
  • Screws for hard disk and back panel fastening x 6
  • CD ROM containing application software x 1
@ @
@ @
@
