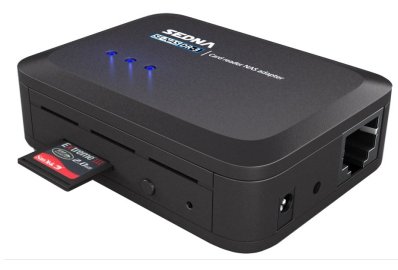

Model No. : SE-NAS-DR3

    NAS Adapter Dongle for Memory card and USB Storage

Product Overview

SE-NAS-DR3 Flash Card NAS Dongle supports popular Secure Digital Card (SD) and Memory Stick (MS) for the storage space, support plug and share function allow user to share they media contain through Ethernet (LAN).

Provide extra USB ports to connect USB storage box become a powerful NAS station supports SAMBA file server, FTP server, Bit torrent server, and XBOX360, Apple-iTunes music server etc..

NAS Dongle also works as USB printer server, connect USB printer and share the printer resource to the network environment. It is a cost-effective and high performance product.

Bundle with SyncQuick NAS manager software, support easy search, scheduling data backup functions, provide a hassle free operation experience for both beginners and power users.

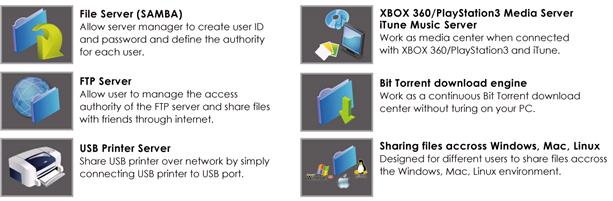

Features :

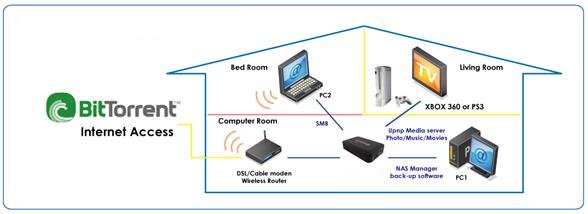

Applications :

High speed throughput :

Embedded with 32bit high performance SOC support transfer speed up to 10MB/s;
2 times faster than the traditional NAS in the market.

Support Smart FAT32 file system :

Support maxima file transfer up to 127GB and able to format large HDD up to 2TB capacity.
Support direct read/write form SD or MS flash card. (Make sure the flash card is already FAT32 format and over 8GB capacity)

Specifications :



Product name:

Memory NAS Adapter Dongle

Interface/ ports:

USB2.0/ LAN (10/100)

LED Display

Power/ Action/ System

Data transfer rate:

Average 8-10 MB/s

Supported Server

SAMBA/ FTP/ DHCP/ Printer/ UPnP Media server/

Bit torrent (client)

Supported Protocol

TCP/IP, USB2.0,

Supported Windows O/S

Windows98SE, Me, 2000, XP, Vista / MAC OS X /Linux and Unix(SAMBA/FTP)

Support USB Storage:

USB HDD Enclosure, USB flash drive

Support SD Card type:

SDHC/ Mini SDHC*/ Micro SDHC* ( * need adapter)

 *Minimum capacity required 8GB

Support MS Card type:

MS Pro/ MS Pro duo

*Minimum capacity required 8GB

Support maximum HDD/ flash card capacity

Up to 2TB

Support system file

FAT32 Compatible

Single file support

Up to 127GB ( over FAT32 4GB limitation)

Product Dimension

70(W)x 32(D)x24 (H) mm (main body)


130 g

Operation Environment :

 0 – 35 degree C

Storage Environment:

 0 – 50 degree C



Package contain:

1x Flash Card NAS Dongle

1x RJ45 LAN Cable

1x 5V Power supply

1x CD utility (Include user’s manual & SyncQuick? NAS Manager)

Package Content

NAS Dongle x 1

Driver and manual CD x 1

Power Adapter x 1

Ethernet cable x 1
