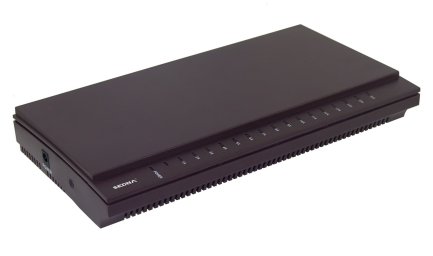

Model No. : SE-NS-1016

  Desk Top 16 Ports 10/100 Fast Ethernet Switch

Features :

SE-NS-1016 DeskTop switch enable you to establish own network by its first -class stability and easy using feature.


The SE-NS-1016 is compact in size, so that it can be placed anywhere on a desktop. It also comes with a wall mount kit as an installation option so that it can be conveniently mounted on a wall. Its power connector and ports are conveniently located in the rear to avoid messy cables on the desk.


SE-NS-1016 is specially designed for the SOHO network, especially for the medium/small enterprises. With great stability and easy-to-use, the Switch can assist you to organize your network. To ensure 16 10/100Mbps ports without congestion, it adopts Infineon chip design scenario and up to 3.2Gbps backplane bandwidth. Furthermore, it integrates 4K MAC address table and automatically study MAC address. Moreover, it supports multiple functions such as NWAY Auto-Negotiation, Auto MDI/MDIX. Without considering network management, you can own a stable and effective network.


  • 16 10/100Mbps ports connect to the workstation and support Auto MDI/MDIX to simplify network fragment and maintenance

  • Complies with IEEE802.3, IEEE802.3u Ethernet Standards

  • Supports NWAY auto-negotiation function, auto detect transmission rate and duplex models, UPnP and automatically chooses the best network connectivity mode

  • Supports IEEE802.3x full-duplex flow control and half-duplex backpressure flow control

  • Supports non-blocking line speed transfer

  • Adopts store-and–forward mode, supports MAC address studying automatically and integrates 4K MAC address table to desire all kinds of application.

  • Easy-to-use external Power

Specifications :
Transmission Media

10Base-T:Cat 3 or above UTP

100Base-TX:Cat 5 UTP

LED Indicator Link/Act for each port, Power

Physical Specifications


Weight:  (1.0 kg.)

size : 248 x135 x35 mm

Plastic Housing


16 LED per port


Working Environment

Operating temperature:0ºC40ºC

Store temperature:-40ºC70ºC

Operating humidity :10%90% RH Non-condensing;

Storage Temperature:5%90% RH Non-condensing

 EMC/ Safety Compliances


CE Mark Class A

FCC Class A

Power Requirements

AC110~220V, , 50 to 60 Hz, External Power Supply

Max Power Consumption: 8W

All specifications are subject to change without notice.

Approval : CE / FCC

Package :
  • SE-NS-1016 switch

  • User Manual

  • AC adapter
