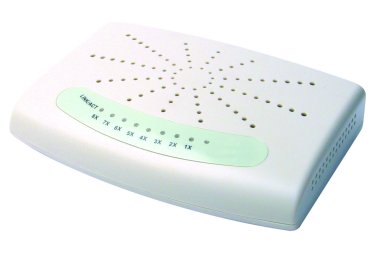

Model No. : SE-NS-108

  Desk Top 8 Ports 10/100 Fast Ethernet Switch

Features :

SE-NS-108 unmanaged DeskTop switch, with (8) 10/100BASE-TX ports, is one of the most popular switches in our product line. It is known for its exceptional performance and quality. The SE-NS-108 is compact in size, so that it can be placed anywhere on a desktop.Its power connector and ports are conveniently located in the rear to avoid messy cables on the desk.

  • Fully compliant with IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX)

  • Straight and cross cables auto detect, Uplink port ready for any of the ports

  • Broadcast storm protection supported, Dynamic buffer Assign and network load balance, Avoids package loss

  • 8 10/100Mbps fast Ethernet ports

  • External power adaptor, low consumption

  • Full and half duplex modes supported

  • 1K MAC address

  • MAC address auto learning and refreshing

  • 2Mb fast packet buffer

  • Mini Plastic Skin, Desktop Mount

Specifications :
Transmission Media

10Base-T:Cat 3 or above UTP

100Base-TX:Cat 5 UTP

Network Interface

RJ-45: 100ohm, UTP/STP cable

10/100Base EIA/TIA Categories 3 or 5 cable

Switching Method/Buffering store-and-forward,  On-chip 2MB packet buffering

- Switch Fabric: 4.8Gbps

- Packet forward rate (100M bps port): 1,480,000Mpps

- Packet forward rate (10M bps port): 1,480,000Mpps

LED Indicator Link/Act for each port, Power
MAC Table 8,000 Entries
Filtering/ Forwarding/Learning Rates Full line rate/full wire speed

Physical Specifications


Weight:  (0.8 kg.)

Plastic Housing

Side Air Vents with Fan-less Air-Cooling Design


100Mbps one per port

10Mbps one per port


Link/Act (activity)

Working Environment

Operating temperature:0șC40șC

Store temperature:-40șC70șC

Operating humidity :10%90% RH Non-condensing;

Storage Temperature:5%90% RH Non-condensing

 EMC/ Safety Compliances


CE Mark Class A

FCC Class A

Power Requirements

AC110~220V, , 50 to 60 Hz, External Power Supply

Max Power Consumption: 2.5W

All specifications are subject to change without notice.

Approval : CE / FCC                    download CE Cert

Package :
  • SE-NS-108

  • User Manual

  • AC adapter
