General Features

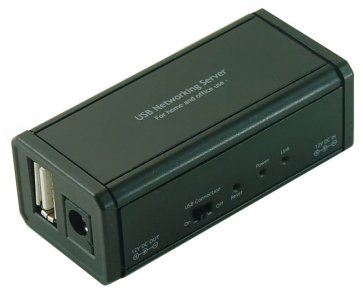

The
USB 2.0 network adapter is a powerful solution convert external USB storage
device to network sharing storage; it is
a cost-effective and high performance products.
-
Provied step to step installation software, support live
device status monitoring via both web browser and application software
-
Supports Microsoft Rally Technology
-
Support majority Ethernet protocols TCP/IP, WSD, UPnP
-
Supports USB 1.1 / USB 2.0 ( Hi-speed ) specification
-
Supports 802.3/3U transceiver, compliant with 100BASETX
and 10 BASE-T PMD level standards
-
Supports MDI/ MDIX auto corssover function ( Auto-MDIX)
-
Supports LED indicators for Ethernet connection
-
Supports up to 3 SPI interfaced devices simultaneously
| Specifications : |
|
| |
|
| Supports products : |
USB External Storage, USB HDD Media player |
| Interface / Ports : |
10/100 Base-TX Auto MDI / MDI-X ( RJ45), USB 2.0
A type |
| Data transfer rate : |
Up to 40Mbps |
| Power supply : |
12V power adapter |
| Hard disk format : |
FAT32 / FTFS |
| Plug and Play : |
Supported |
| Drag and Drop : |
Supported |
| OS support |
Windows 2000/XP/Vista |
| Dimension : |
32x70x25 mm |
| Weight : |
130g |
| |
|
Package Contentbsp; Package Content
USB network adapter x 1
Driver and manual CD x 1
Power Adapter x 1
Ethernet cable x 1
|
