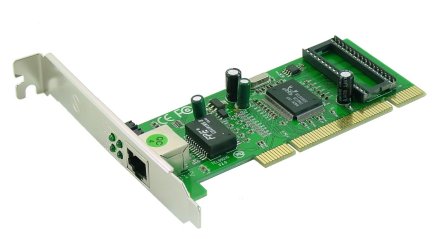

Model No. :SE-PCI-LAN-1G


  PCI 10/100/1G Ethernet Adapter
















  FEATURES AND SPECIFICATIONS

General Features

The SE-PCI-LAN-1G Network Interface Card is a cost-effective 1000/100/10Mbps high speed Gigabit Ethernet Card. With Auto-Negotiation capability, the NIC automatically supports data transmission bandwidth from 10Mbps to 2000Mbps. This function smoothly and automatically switches drivers between 10Mbps, 100Mbps and 1000Mbps. The Network Interface Card is your best choose to improve network performance with the highest performance/price ratio.

Specifications :

  • Bus: PCI V2.2, 32-bit, 33/66MHz

  • IEEE802.3, IEEE802.3u, and IEEE802.3ab compliant.

  • Support for IEEE802.3x Full-Duplex flow control.

  • Support IEEE802.1Q Virtual LAN (VLAN) Tag

  • Complaint to PC97, PC98, PC99 and PC2001 standards

  • Auto-Negotiation support for Auto-Detect 10/100/1000Mbps data rate and Full/Half-Duplex operation mode

  • Support ACPI and PCI power management

  • Automatic crossover support for crossover or regular cable

  • Support Boot ROM function (optional)

  • Support Wake on LAN function ( optional )

  • One RJ-45 Port

  • Supports Drivers

    • ODI drivers Novell NetWare 4.x, 5.x

    • NDIS 4.0 drivers Windows NT4.0

    • NDIS 5.0 drivers Windows 98/98SE, Windows ME, Windows 2000, Windows XP

    • UNIX Drivers Linux Kernel 2.2x, Linux Kernel 2.4x, FreeBSD


Package contents :

  • 1 x PCI-LAN-1G adapter

  • 1 x User Manual
  • 1 x Driver CD
