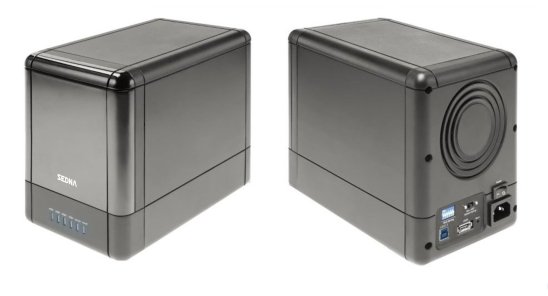

Model No. : SE-RAID-304-U
    USB 3.0 / eSATA 4 Bay RAID Enclosure for 3.5" SATA Hdd


   Features and Specifications :

USB3.0 is major update to USB2.0 that promise higher performance with better power management, transfer rate up to 5 Gbit/s or 10 times faster than USB2.0, With smart RAID technology SE-RAID-304U supports RAID 0+1 in order to provide a total data protection by mirroring your files to the backup hard drive, and RAID 0 can utilize four hard drives to maximize data transfer speed and increase storage capacity.
  • Aluminum main body
    Rock and solid design! Compact in size easy to carry and store.
  • Easy HDD installation
    Magnetic front door panel and Trayless design, no tools require to install HDD.
  • HDD Spin-down
    Supports HDD auto spin-down function to save power and protect HDD.
  • Supports RAID function
    Support RAID level 0 (Striping), RAID 1(Mirroring), 0+1 and JBOD.
    Independent hardware RAID controller, no software install required.
  • Auto Power on/off with system
    Auto detect and power on/off when connected system is turned on/off.
  • Energy saving design consumes less power.
    External power adapter follow energy saving EAP specifications.
  • USB3.0 High Speed Cable
    Certified USB3.0 cable support high speed transfer rate up to 5 Gbps.
Specification :

Interface:

USB3.0 support up to 5Gbps (Backwards compatible with USB2.0)

eSATA support up to 3Gbps.

Support RAID level: RAID 0, 1, 0+1, JBOD, and individual mode.
Supporting Hard Disk: SATA I/II up to 2TB capacity for each HDD
Product Dimension: 140(W)x 222(D)x184(H) mm (main body)
Weight 3kg (Exclude hard disk)
Operation Environment : Operation Temperature: 0C ~ 35C , Operation Humidity: 10~90RH
Storage Environment: Storage Temperature: -20C ~ 70C , Storage Humidity: 5~95RH
Certification: CE, FCC Certified




   Package Content :

  • se-raid-304-u

  • 1x USB3.0 Cable

  • 1x eSATA cable

  • 1x External power adapter

  • 1 x Utility CD
