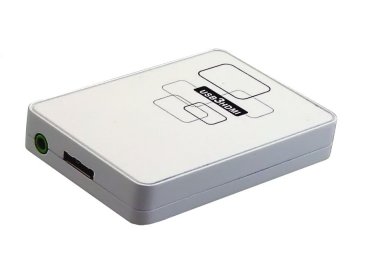

Model No. : SE-USB3-HDMI-32
Portable USB 3.0 HDMI Adapter

@

@

@


@

@

@

@

@


@

@ @
@ @

Features :
@
  • Small Portable size
  • Easy to add extra display by plug in device to USB 3.0 connector
  • High speed high resolution display up to 2048 x 1152
  • Small and slim design, easy to carry
  • Audio input, adding sound to HDMI output
  • HDMI 1.2 output
  • Power from USB, no extra power supply needed

Specifications:

  • Compliant with USB 3.0 Specification
  • Backward compatible with USB 2.0 specification
  • Support USB 3.0 upstream port in: SS mode (5 Gbps) HS mode (480 Mbps) FS mode (12 Mbps)
  • Compliant with HDMI ver. 1.2 specification and backward compatible to DVI Ver. 1.0 specification
  • 24-bit 2-channel I2S digital audio data via HDMI
  • One I2S interface support 2-channel audio
  • Audio sample rate range: 32 kHz ~ 48 kHz
  • Sample size range: 16 bits ~ 24 bits
  • Support pixel rate ranging from 25 MHz to 165 MHz
  • DTV resolution: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p
  • Monitor resolution: VGA, SVGA, XGA, SXGA, and UXGA ( Max resolution : 2048 x 1152 )
  • Support pixel rate from 25 MHz to 200 MHz

Package Includes:

  • SE-USB3-HDMI-32
  • USB Cable
  • Driver CD
  • Audio Cable
  • Optional HDMI to DVI adapter
@

Approval : : CE / FCC

@ @
@ @
@ @
